CDC

Precision Compact Disk
Concept player

The CDC offers a revolutionary front loading design with the playback module mounted securely in the CD drawer. The stability and performance of this precision drawer ensures that the CD is read with perfect reliability. The digital signal path is entirely treated at the 44'100Hz frequency avoiding the possibility of introducing parasitic interference through up sampling techniques.

The brushed aluminium case and the gold plated encapsulation for the digital-to-analog converters ensures that there is no interference of the audio signal from radiation, and thus guarantees signal purity.The CDC uses an external power supply which ensures that there is no alternating current nor high voltages inside the unit. These factors blend to offer the user a pure transparency, and an audio restitution identical to the original recording. The transport of the CDC is fully remote controlable, and all the transport functions are displayed on the back-lit LCD indicator mounted on the front side of the CD drawer. Featuring a traditional Nagra modulometer the CDC allows the integrity of the restitution to be visiually monitored all the time. The chassis of the CDC is identical in dimension to the renowned PL-P and PL-L and thanks to the front-loading mechanism allows the units to be stacked neatly together.

Stereo 2006
Test Stereo 2007
Follow up Stereophile 2007
Test The Absolute Sound 2007

CDP
Precision Compact Disk Concept player

CDP je CD player sa ugradjenim digitalno analognim konvertorom sa fiksnim analognim izlazom. Dizajniran je da radi paralelno sa Nagra predpojačalima i istih je dimenzija kao i PL-L and PL-L.
The CDP is a CD-player with a built-in digital-to-analogue converter with a fixed level analogue output. Designed to run in parallel with a NAGRA pre-amplifier it shares the same physical dimensions as the PL-L and PL-P.

The CDP offers a fixed level audio output and ideally should be connected to the system using a pre-amplifier (Nagra PL-L or PL-P). It has both symmetrical and asymmetrical analogue outputs as well as a digital output for connection to an external DAC if desired. The CDP offers a revolutionary front loading design with the playback module mounted securely in the CD drawer. The stability and performance of this precision drawer ensures that the CD is read with perfect reliability.

The digital signal path is entirely treated at the 44'100Hz frequency avoiding the possibility of introducing parasitic interference through up sampling techniques.The brushed aluminium case and the gold plated encapsulation for the digital-to-analog converters ensures that there is no interference of the audio signal from radiation. The CDP uses an external power supply which ensures that there is no alternating current nor high voltages inside the unit. These factors blend to offer the user a pure transparency, and an audio restitution identical to the original recording. The transport of the CDP is fully remote controlable, and all the transport functions are displayed on the back-lit LCD indicator mounted on the front side of the CD drawer. Feating a traditional Nagra modulometer the CDP allows the integrity of the restitution to be visiually monitored all the time.The chassis of the CDP is identical in dimension to the renowned PL-P and PL-L and thanks to the front-loading mechanism allows the units to be stacked neatly together

Broshure
Diapason 2007
Test Hi-Fi News 2008
Test Image HiFi 2007
Test Music Emotion 2007

CDT
Precision Compact Disk Transport

CDT je CD Transport dizajniran za upotrebu sa eksternim digitalno analognim konvertorom.
The CDT is a CD transport designed to be used with an external digital-to-analogue converter (NAGRA DAC). It is purely a transport, benefiting from the design technology and unique clocking system of the CD-C.

The CDT is the transport only member of the CD family. It must be connected to an external D/A converter (Nagra DAC) and in turn a pre-amplifier.
Mechanically it is identical to the CDC and CDP models offers the same digital transparency thanks to its unique playback module mounted in the drawer.

Broshure

DAC
High definition Digital to Analogue Converter

DAC je visoko kvalitetni digitalno analogni konverter sa daljinskim komandama, dizajniran da konvertuje digitalni signal sve do 192 KHz., do najčistijeg analognog signala do prepojačala ili direktno na izlazlno pojačalo.
The DAC is a high quality digital to analogue converter, equipped with remote control and designed to convert the digital signals, up to 192 kHz sampling frequency, to the purest analogue audio levels to feed directly into a power amplifier or pre-amplifier.

The DAC offers over sampling and 24 bit conversion. The DAC has inherited the fabulous electronic design of the Nagra D and Nagra V digital recorders used by the most prestigious music companies and recording engineers in the world. These exceptional machines have convinced the engineers that digital audio could convey the emotion and warmth of analog tape recorders and long play disks that they miss with other digital formats.The DAC was designed with the same ingredients and philosophy to provide you with state-of–the-art technology respecting your music.
Broshure
Test AudioVideo Prestige 2003
Test Haute Fidélité 2004
Test Image HiFi 2004
Test Audio Magazine 2005

VPS
Valve Phono Stage

The VPS is the ultimate interface between the turntable cartridge and rest of the system and gives the most transparent pre-amplification available today. Powered by its own independent supply unit, the ACPS II, with special smoothing circuitry, that guarantees the purity of the audio signal path.

The internal circuits of the VPS are gold plated and the in-house wound input transformers guarantee the highest possible fidelity when used with a moving coil input. The metal chassis of the VPS offers excellent protection from spurious parastic interference which can be very infuential when working with phono level audio signals. All the connections to the VPS are available on the rear of the unit and use the WBT gold-plated RCA connectors. The VPS is equipped with a single MC input stage as standard, but can be equipped with an optional second MC or MM input circuit to accomodate a second turntable.

Test Image HiFi 2007
Test Revue du Son 2008
Test HiFi Review Germany 2008

BPS
Solid State Batery
Phono Stage

Umanjena veličina Nagra BPS (BPS - Bipolar Phono Stage) fono sekcije je rezultat upotrebe bipolarnih tranzistorsa, sa povoljnijom cenom za implementaciju u odnosu na verziju sa cevima.
The reduced size of the Nagra BPS phono preamplifier is the immediate result of using completely solid-state technology, less costly to implement than for the valve version.

The Nagra BPS enjoys an attractive positioning thanks to a simplified approach as regards functions. Nagra however retained the popular load adaptation found on the VPS model, which allows to obtain, with small plug-in modules, the desired matching between the phono preamp and the specific cartridge used on the turntable arm.
The equipment supports either moving-coils (MC) or moving-magnet cartridges (MM) by means of appropriate switching.

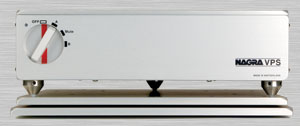

VFS - Vibration Free Suport
Za idealnu reprodukciju VPS bi trebalo da se instalira na VFS (postolje za absorpciju vibracija) za totalnu eliminaciju mehaničkih vibracija.
Ideally, the VPS should be installed on the VFS (Vibration Free Suport) shock absorbing plates, to totally eliminate any mechianical vibration from being transmitted to the highly sensitive input stage.

PLL

Line Vacum Tube Pre Amplifier

Elegancija i lepota
PLL-L je cevno prepojačalo u u čistoj klasi A, zasnovano na proverenom dizajnu svetski priznatog PL-P sa četiri ulaza. Razlikuje se od PL-P po tome što nema phono sekciju i nije opremljeno sa internim baterijskim napajanjem. za totalnu strujnu izolaciju.
Elegance and beauty
The PL-L is a Pure Class A vacuum tube line pre-amplifier, based on the proven design concepts of the world-renowned PL-P and offering 4 inputs. It differs from the PL-P in that it does not have a phono front-end stage and is not equipped with the internal battery for total power isolation. The PL-L has a remote control allowing the different functions to be remotely selected and optimal balancing of the output transformers. The jewel-like machined anodized aluminum case features input source selection, balance and volume controls, as well as a precision modulometer for system level matching. The PL-L is designed to provide the highest quality audio performance in an ultra-high-resolution audio system.

• Reaching a proper balance between left and right channels ;
• Compensating the level differences between various recordings ;
• Controlling the power supply DC input level ;
• Controlling the output level of the amplifier (if correctly set).

Broshure
Test Audio Art 2004
Test Audio Cite 2005
Test Music Emotion 2007

Test Prestige AV 2000
 Test Stereophile 2002
Test Audio Magazine 2005
Test Stereo 2007

PL-P

Battery operated Tube Pre Amplifier with phono stage

PL-P je visoko kvalitetno cevno predpojačalo u klasi A sa visoko preciznom Phono sekcijom za gramofonske ploče. Sa jedinstvenim internim dopunljivim baterijskim napajanjem, visoko osetljivom Phono sekcijom i u potpunosti izolovanim strujnim napajanjem kako bi se izbegao bilo kakav šum.
The PL-P vacuum tube pre-amplifier is a high quality pure class A tube based pre-amplifier including a high precision phono stage for vinyl records. With its unique internal rechargeable battery power supply, the highly sensitive phono stage, features individually hand-wound NAGRA built transformers, is entirely isolated from the mains power supply and hence avoids any form of hum loop. Able to handle both moving coil and moving magnet cartridges and up to 4 independent sources the PL-P is an extremely flexible preamplifier.
Uncompromised power supply
In any pre-amplifier, the power supply is a sensitive and significant component. This is especially true when dealing with phono levels. That’s why the PL-P power supply uses a set of rechargeable "D" cell batteries, operating through an external current charging AC supply. This design eliminates all disruptive effects of AC powering from wall outlets and may solve persistent hum problems. The internal power supply regulation circuitry of the PL-P uses proprietary, dual DC-to-DC converters to eliminate power supply ripples and assures a clean power source for all active electronic stages and components.
Unique design phono stage
The phono stage is built around the best tubes out of our selection and especially designed Nagra transformers for impressive noise figures, dynamic and high-resolution performance with both moving magnet and moving-coil cartridges.
Variable capacitive (from 47 pF to 837 pF) and resistive (30 Ω to 330 Ω) loading is provided to allow ideal matching with most available cartridges. Switches for selecting the appropriate loading options are internally mounted on the circuit board to protect sensitive low-level signals from undesirable interferences.
A class tube
Two triode sections, biased for pure class-A operation, are implemented in each channel for additional amplification. The PL-P has two stages, the first one for level input management and the second for output level management and record loop.
As in all vacuum tube circuits within the PL-P, precise DC filament voltage regulation from the power supply ensures low-noise, high-resolution performance and a long lifetime. The output stage vacuum tubes, operating in pure class-A, are directly coupled to the output connectors; they can accommodate loads as low as 600 Ω. To facilitate tape transcriptions and external signal processing, a full tape loop facility is also provided.

Attention to detail
To reduce unwanted interference, the main circuit board is mounted on elastomer dampers to eliminate the effect of external vibrations.
To conserve component life and battery reserve, only those vacuum tubes required for the selected input are turned on. The audio output is automatically muted when switching between input sources.

Ergonomics
Input selection is made on the left side of the front panel using a precision rotary switch. One phono and three line level inputs are provided. Input levels for all sources can be adjusted via left and right potentiometers on the front panel. A clever geared clutch mechanism, allows these channel adjustments to be made either independently or together.

Tradition - Level matching through the Nagra modulometer
A highly precise, Nagra-made modulometer, identical to the legendary NAGRA IV-S, provides a multitude of functions through two coaxial, internal pointers representing the left and right channels. The Nagra modulometer is a true measurement device that allows precision over a large scale. The modulometer can be used to adjust the volume and balance potentiometers for:

• Reaching a proper balance between left and right channels ;
• Compensating the level differences between various recordings ;
• Controlling the power supply DC input level ;
• Controlling the output level of the amplifier (if correctly sets)

Broshure
Test Alta Fidelidad 1999
Test Audiophile 1998
Test Image HiFi 1998
Test Stereosound 2004

Test image HiFi 2003
Test MJ Audio Technology 1998
Test Stereo 1998
Test Stereo Sound 1998
Stereo Sound Award 1997

MSA

MOSFET Stereo
Power Amplifier

Isporučuje 60 W po kanalu, ima Nagra instrument koji pokazuje snagu i premostiv je kao Mono. Ima balansirane ulaze, WBT konektore za zvučnike, Auto start/stop funkciju, osetljivost 1 ili 2 V )podešava se prekidačem na zadnjem panelu. Ima kao opciju poklopac koji pokriva hladnjak.
It delivers 60 W per channel, it features a Nagra power meter, and is bridgeable. It has balanced inputs on XLR, WBT speaker connectors, an Auto start/stop function, sensitivity of 1 or 2 V (set by a switch on the rear panel). It has an optional cover that hides the heat sink.

Napajanje
Za poboljšane performanse MSA se isporučuje sa tri različita interna napajanja prema tržištu 230 V, 115 V i 100 V.
Power supply
To improve its performance as well as limiting grey market issues, the MSA comes with three different internal power supplies. 230 V, 115 V and 100V.
Hladnjak
Kako bi se iskoristilo što više od limitirane površine, hladnjak pokriva celokupnu gornju površinu pojačala. Proizveden je od bloka aluminijuma težine 10 Kg. a posle završne obrade njegova težina reducirana je na samo 3.5 Kg.!
Heat sink
To make the most of the limited surface area, the heat sink covers the entire top of the amplifier. It is machined from a solid 10 kg block of aluminum, and after machining is completed, its weightreduced to 3.5 kg!

Prednja ploča sa sa Nagrinim modul metrom (istim kao kod CDC)
The front panel features Nagra new modulometer (as the CDC)

Broshure
MSA Development Review with Hi Res. Pictures

MSA Review - Haute Fidelite May 2010
MSA Review - 6 Moon April 2010

PMA

Pyramid Monoblock
Power Amplifier

PMA su par mono blokova podno stojećih piramida. Sa snagom od 200W ova tranzistorska pojačala u klasi AB pružaju zvuk preuzet od prestižne MPA porodice. Opremljeni su sa opcijom automatske strujne uštede koja im dozvoljava automatsko uključenje i isključenje bez intervencije operatera, pružajući audiofilima transparentnost i jasnoću zvuka.
The PMA is a pair of mono-block floor standing pyramids. Offering a power output of 200 watts, these solid-state amplifiers offer a class AB operations inherited from the prestigious MPA family. They are equipped with an automatic power saving feature that allows them to switch on and off automatically without the intervention of the operator, and give the discerning audiophile a natural transparency and clarity of sound.

Unique design
The revolutionary concept encompasses an aluminium pyramidal design that is as functional as it is distinctive. The electronics benefit from the experience of the MPA, Nagra’s first solid-state power amplifier.
Mono block architecture
The mono block architecture allows each channel to have its own power unit. This improves the channel crosstalk and also the response to transient signals, in other words: natural and musical rendition. In addition the amplifier can now stand close to your loudspeaker allowing you to shorten speaker cable length and thus increase the quality of your system.

Broshure
Test Audio 2005
Test Audio 2005
Test Haute Fidélité 2005
Test Stereo 2007

Test Revue Du Son 2006
Salzburger 2005
GrandPrix Stereosound 2005
Test The Absolute Sound 2007

PSA

Pyramid Stereo
Power Amplifier

PSA je stereo verzija PMA postavljena na jednoj šasiji piramide. Daje 100 W izlazne snage po jednom kanalu. Pruža istu čistoću zvuka i prirodnu transparenciju kao i MPA ali u mnogo kompaktnijem formatu.
The PSA is a stereo version of the PMA mounted in a single pyramid chassis. It gives 100W of output power from a single stereo unit. The PSA provides the same sonic purity and natural transparency as the MPA but in a more compact format.  Designed to be used in conjunction with either the PL-L or PL-P pre-amplifiers and is an efficient amplifier with a unique power factor correction system with auto start stop.
Unique design
The PSA is a single chassis unit, delivering 100 W (into 8Ω). The revolutionary concept encompasses an aluminium pyramidal design that is as functional as it is distinctive. The electronics benefit from the experience of the MPA, Nagra’s first solid-state power amplifier.
Pure power = pure sound
The performance of an amplifier depends very much on the powering unit, thus on the mains’ quality. As the latter can’t really be improved, the PSA integrates a PFC – Power Factor Corrector. This device acts like a reserve of power to deliver pure DC voltages to the amplifier. Benefiting from Nagra’s first PFC developed for the MPA, the pyramid’s innovative PFC is the subject of a new Nagra patent.

Audiophile’s choices
To achieve ultimate sound and reliability, the selection of every component is critical. This is especially true for the choice of the power transistors. After numerous electrical and subjective tests, the Research and Development team has chosen to use MOSFET transistors from Exicon. They demonstrated the best characteristics among all the specifications we are concerned with.
Controlling power
When dealing with top-class loudspeakers, you are entitled to expect the best protection from your amplifier. The PMA will automatically switch to the protection mode in the event of a DC voltage occurring on the output connectors or in the case of overheating. In addition, an overload LED will blink if the PSA reaches its maximum power.

Broshure
Test Audio Art 2006
Test Haut Fildélité 2005

VPA

Pure Class APush-Pull

Triode Monoblocks

VPA je par mono cevnih pojačala. Opremljeni su sa simetričnim i asimetričnim ulazima, pružaju snagu od 50W u čistoj klasi A bez povratne sprege. Koriste par uparenih i ručno selektiranih 845 cevi ya yvuk bey premca. Još od prestavljanja 1998 godine, VPA su postavili novi standard za cevna pojačala, osvojili prestižne nagrade i što je još važnije postali referenca za ogroman broj audiofila širom sveta.
The VPA is a pair of mono block vacuum tube power amplifiers. Equipped with symmetrical and asymmetrical inputs, they offer a power output of 50 Watts through a pure class A output stage with no feedback. Using a pair of matched and individually selected 845 output tubes the VPA offers a clarity of sound second-to-none.  Since its introduction in 1998, the VPA has set new standard for vacuum tube amplifiers, won prestigious awards and, more importantly, became a reference for a tremendous number of audiophiles all over the world.

Difficult Speaker Loads and Zero Negative feedback
Vacuum tube amplifiers seldom drive difficult speaker loads with success. Using electrostatic or low-impedance dynamic speaker designs with these amplifiers often yield unpredictable results. With the VPA, implementing a zero negative feedback design renders matching difficult speakers much easier. In addition, the VPA offers 4, 8 and 16 Ω outputs so it can accommodate even the most demanding loudspeakers.Constructed in machined-aluminum towers, its highly sophisticated design is based on Nagra’s simple rule: only the best components, no compromises on quality. In addition, the VPA uses fully balanced circuitry from input to output to minimize intermodulation distortion and phase shift as well as decreasing the need for internal feedback.
As a result, the rise time, slew rate and overshoot characteristics of the Nagra VPA are uncommonly good compared to other amplifiers, and simply extraordinary for one based on vacuum tubes. These performance characteristics are constant whether the VPA is delivering minimum or full power.

Difficult Speaker Loads and Zero Negative feedback
Vacuum tube amplifiers seldom drive difficult speaker loads with success. Using electrostatic or low-impedance dynamic speaker designs with these amplifiers often yield unpredictable results. With the VPA, implementing a zero negative feedback design renders matching difficult speakers much easier. In addition, the VPA offers 4, 8 and 16 Ω outputs so it can accommodate even the most demanding loudspeakers.
Fast, Deep and Low with Nagra Output Transformers
Proprietary Nagra output transformers are used to avoid low-frequency saturation and high frequency ringing so common in other transformer-coupled output states. Bass notes are delivered with absolute authority and sound-stage scale delineation is simply superb.

Choice of 845 Tubes
The 845 tubes go through a 24 hour burning and numerous measurements before computer-assisted matching by pairs.
Inputs
The VPA features both balanced and unbalanced inputs on XLR and RCA connectors.
Monoblock design
The monoblock design offers the advantage of providing one power unit per channel, this contributes to the channel separation and thus respects the signal’s integrity. The amplifiers should now stand close to your loudspeakers, enabling shorter speaker cables to be employed and thus allows a better damping factor.
In addition, the tower configuration allows an optimization of the floor space.

Test Audio Cité 2006
Test Image HiFi 2004
Test Audio Magazine 2005

Test Stereo 1999
Test image HiFi 2003
Test Stereosound 2004

About the company - Nagra, a legendary brand, an unique company
Few names in the world of professional audio enjoy prestige on a par with that of Nagra.
Spanning more than half a century, the story of the brand has been punctuated with inventions and developments that have revolutionized the history of sound recording.
In 1951, Stefan Kudelski developed the first independent, portable recorder, the
Nagra I. This machine went down in history as it introduced a concept that had remained unattainable until that moment: freedom of movement.
For the world of radio and television and for the cinema and recording industry in particular, this was a giant step forward, and one that opened up extraordinary horizons. The invention was all the more spectacular in that it came with a very high quality of sound reproduction. In this regard, Nagra recorders surpassed many large stationary installations. Furthermore, they were exceptionally robust.
Different generations of equipment succeeded one another, continuously developing the qualities upon which the brand’s success had been built. Nor was this triumph limited to the ranks of reporters and sound engineers.
Scientists, explorers, ethnologists, musicologists and other enthusiastic sound recordists traveled to the remotest corners of the planet, their Nagra machines slung across their shoulders, collecting records that were often of exceptional value.More than any other machine, the Nagra recorder contributed to the establishment of the world’s sound archives.
A successful overture to the audiophile market
Nagra has always fascinated audiophiles. Since 1997, the business has devoted particular attention to this market, designing a specific range of exceptionally high quality Hi-Fi equipment: PL-L and PL-P pre-amplifiers, VPA tube amplifiers and MPA, PMA and PSA transistor amplifiers, DAC converters and the SNST-R miniature recorder.These devices are achieving international success and are regarded by the specialist press as flagship equipments.
A division of the Kudelski Group
Nagra is a division of the Kudelski Group, which owns several companies offering state-of-the-art solutions in three principal sectors: conditional access and management solutions for digital television and broadband Internet, smart card-based physical access solutions as well as professional and High-End hi-fi products.
