Muzika je oduvek bila culno zadovoljstvo, izraz slobode i zivotnog stila.
Finite Elemnte koristi nase kompletno iskustvo kako bi ostvario kvalitet u dizajnu i tehnologiji bez postavljanja
bilo kakvih ogranicenja na muziku, dozvoljavajuci u isto vreme punu snagu i pasiju najprirodnijoj formi ljudskog
izraza da bude osvetljena do najsitnijeg detalja.

Music has always been a sensual experience, the expression of freedom and lifestyle.
Finite Elemente took our entire experience to achieve a quality in both design and technology without imposing
any restrictions what-soever on the music, while allowing the full power and passion of this most natural human
form of expression to be illuminated down to the finest detail.

 Više detalja o Finite Elemente proizvodima - More details about Finite Elemente products.

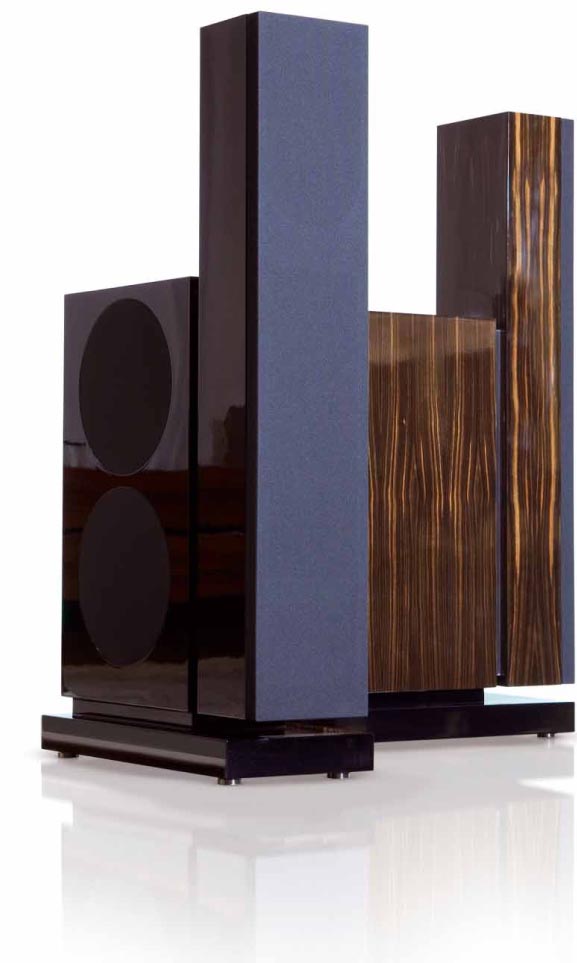

Modul LS Speakers

Dekorateri bi možda rekli da Modul LS nije ništa više nego zvučnik koji odgovara nameštaju. U stvari to je "High End" prozvod u svakom pogledu sa izuzetnim dizajnom kabineta i reprodukcijom koja je vremenski stabilna do prekomerne tačke grube neutralnosti.

Perfektno u svakom pogledu.

Sjajno!

Modul Ls Zvučni Sistem visokog nivoa - Modul ls high-grade speaker system

Koncept / Concept

Modularni dizajn kabineta / Modular cabinet design
- Kabinet za zvučnike u nižem opsegu / woofer cabinet
- Kabinet za zvučnike u srednjem i višem opsegu / midrange/tweeter cabinet
- Podnožje / plinth
- Zavrsne Obrade / Finishes

Optimizovano ponašanje rezonansi / Optimised resonance behaviour
- Mehanički odvojeni kabineti za module / mechanically separated cabinet modules
- Patentirana Ceramic Ball tehnologija za povezivanje / ceramic ball coupling technology (patented)
- Selekcija visoko kvalitetnih materijala / high-quality material selection

Poluaktivni modularni koncept / Semi-active modular speaker concept
- Aktivna ekvilizacija / control electronics (active equalization with Pole-Shift filter)
- 500 W ICE snaga Klasa D po niskotoncu 1Kw po kanalu) / 500 W ICEpower Class D amplifier per woofer (1000 W per channel)
- Srednjotonac/visokotonac (pasivna skretnica) / midrange/tweeter crossover (passive)

Karakteristike
- Mehanički odvojeni kabineti koji sprečavaju obostrani uticaj.
- Povezivanje odvojenih kabineta koristi patentiranu "Keramička kugla" tehnologiju za definisanje transfera rezonansi
- Minimiziranje zvučnih panela pozicioniranjem niskotonskih jedinica sa strane kako bi minimizovali ivične refleksije
- Reprodukcija niskih tonova sa 4 ScanSpeak jedinice sa velikom površinom membrane za veoma dubok bas i ekstremno mala izobličenja u reprodukciji basa. Visok nivo zvučnog pritiska (110 dB na 50 Hz). Asimetričan raspored levog i desnog zvučnika za sprečavanje zvučne radijacije u odnosu na centralno postavljeni objekat i negativnu rezonansu koja se prenosi na muzički izvor

Features
- Mechanically separated cabinets to prevent reciprocal influence.
- Coupling of the separated cabinets using a patented ceramic
ball system for defined resonance transfer
- Minimised sound panel by positioning the woofer driver units at
the side to minimize edge reflections
- Low frequency reproduction using 4 ScanSpeak driver units
with large cone surface for very deep and extremely low
distortion bass reproduction. High maximum sound pressure
(110 dB at 50 Hz). Asymmetrical arrangement in left and right
speaker to prevent sound radiation to centrally positioned objects
and negative resonance transfer to music sources

Broshure
Stereo Avgust 2008 Test
HiFi+ no.64 Test
HiFi Recirds April 2009 Test

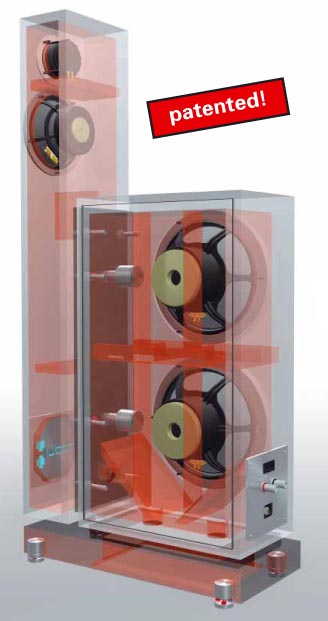

Woofer cabinet made of heavy 30 mm Multiplex panels with frame-type struts and a rearside chamber for the control and amplifier electronics
Midrange/tweeter cabinet made of lightweight composite board with punctiform reinforcing struts
Plinth with Cerabase interface feet and 8-fold screw connection for effective resonance transfer into the floor
Modular design of amplifier and control electronics on aluminium rear panel for optimum cooling and simple servicing. Amplifiers in Class D design with extremely small dimensions and low waste heat at very high efficiency.
Integrated selectable mains supply (100-240 Volt)
Crossover with selected and highest quality components as independent module, installed in the midrange/tweeter cabinet for simple servicing
Adjusting to room acoustics by means of remote
controllable electronics using a cable remote control wit display to easily adjust both loudspeakers to the listening room or to listening preferences
Adjustments: Volume level (-6 dB to +6 dB)
Room size, room hardness, phase (0°/180°)
Subsonic filter 35 Hz/-24 dB (switchable) for the use in big rooms and/or at higher volume levels

Specifikacija / Specifications:
Height: 1100 mm / 43.3"
Width: 200 mm / 7.8" (with plinth 265 mm / 10.4")
Depth: 565 mm / 22.2" (with front grille 595 mm / 23.4")
Weight: 58 kg / 128 lb per speaker
Recommended amplifier power: 20 – 250 W
Active woofer unit power: 1000 W (ICEpower Class D)
Power consumption: 3 – 1000 W
Impedance: 4 Ω
Frequency range: 15 Hz – 22 kHz
Sensitivity: 90 dB (2,83 V/1m)
Max. sound pressure: 110 dB / 50 Hz
Special features: active equalization, room adjustable
Driver units:
Woofer: ScanSpeak (2x 260 mm / 10,2" metal cone)
Midrange: ScanSpeak (1x 180 mm / 7", paper cone)
Tweeter: ScanSpeak (1x 25 mm / 1", metal dome)
Cabinet finishes: Matt or high-gloss lacquered,
Wood veneer matt or high-gloss lacquered

 Više detalja o Finite Elemente Modul Modul elementima  - More details about Finite Elemente Modul Modul elements
